Matrix Body PDC Bits

5-Axis pecision milling to get what you want!

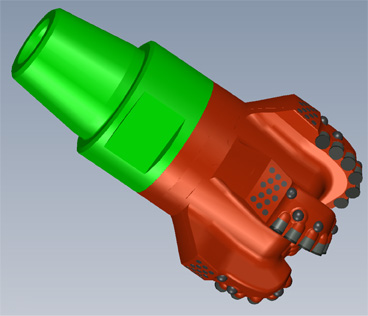

  • Repeatable molds created directly from computer models, eliminating variability.
Rocky Mountain Bit PDC's
  • Premium PDC cutters allows for longer bit runs.
  • Proven cast infiltrated Tungsten Carbide matrix shell provides considerable erosion and abrasive wear resistance, allowing for more runs and rebuilds

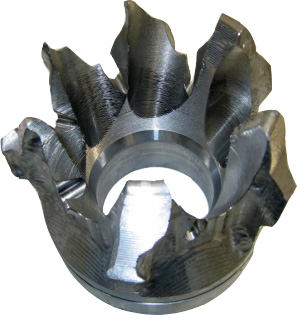

Matrix Body Mold

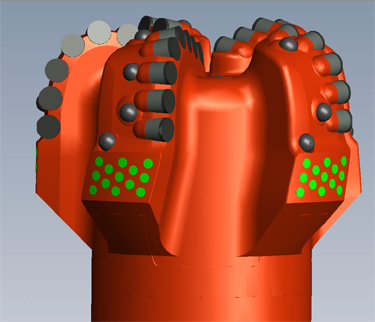

  • Gage pads have Thermally Stable Polycrystalline (TSP) Diamonds for maximum protection at maintaining hole diameter.
  • 2 Piece construction with 4140 alloy steel shank for API connection.

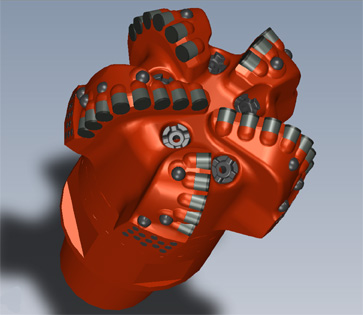

  • Removable nozzles for customizing the TFA of each application.
  • Available in many PDC bit sizes and styles, with a wide selection of PDC cutter sizes and number of blades and nozzles.
Rocky Mountain Steel Body PDC Bit
Click on link below to view Data Sheet RMB Nomenclature



Size Type

Cutter Size

# of Blades # of Nozzles Backup Cutters
5.875" RMB M556 16mm 5 6 none
6.125" RMB M566 16mm 6 6 none
6.250" RMB M566 16mm 6 6 none
6.500" RMB M566 16mm 6 6 none
6.750" RMB M566 16mm 6 6 none
7.875" RMB M546X 16mm 4 6 13mm
  RMB M546XB 16mm 4 6 13mm
  RMB M555 16mm 5 5 none
  RMB M557 16mm 5 7 none
  RMB M557X 16mm 5 7 13mm
8.500" RMB M568X 16mm 6 8 13mm

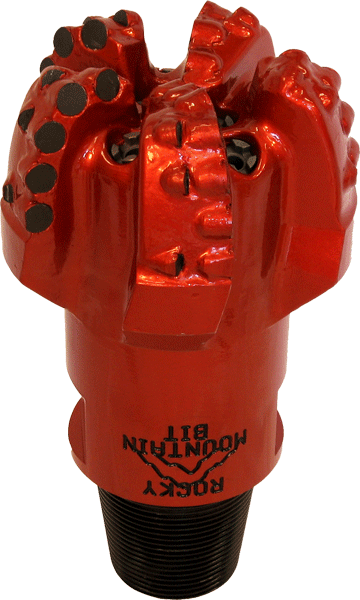

8.750" RMB 657X 19mm 5 7 16mm
  RMB M555 16mm 5 5 none
  RMB M557 16mm 5 7 none
  RMB M557mp 16mm 5 7 none
  RMB M557X 16mm 5 7 13mm
  RMB 568X 16mm 6 8 13mm
  RMB M448 13mm 4 8 none
9.875" RMB M557X 16mm 5 7 13mm
